RSX1 shuttle system

The high-density small parts storage system for totes and trays weighing up to 50 kilograms convinces with maximum compaction of the storage locations, flexible scalability, enormous robustness and easy integration. Compared with conventional automated systems, the RSX1, which is based on novel shuttle-technology, significantly reduces the space required and increases efficiency and profitability in small parts storage. The flexible scalable performance of the RSX1 reaches up to 1500 storage and retrieval operations per hour and aisle. With a height of up to 30 metres, the RSX1 also makes optimal use of the airspace. Whether it’s a decentralised centre, micro-fulfilment centre, buffer warehouse or production warehouse – with the innovative RSX1 shuttle system, intralogistics can be automated to great advantage.

RSX1 shuttle system

The high-density small parts storage system for totes and trays weighing up to 50 kilograms convinces with maximum storage density, flexible scalability, enormous robustness and easy integration. Compared to conventional automated systems, the RSX1, which is based on innovative shuttle-technology, significantly reduces the space required and increases efficiency and profitability in small parts storage. The performance of the RSX1 is flexible scalable up to 1500 storage and retrieval operations per hour and aisle. With a height of up to 30 metres, the RSX1 also makes optimal use of the airspace. Whether decentralised centre, micro-fulfilment centre, buffer warehouse or production warehouse – with the innovative RSX1 shuttle system, intralogistics can be automated to great advantage.

RSX1 shuttle system

The high-density small parts storage system for totes and trays weighing up to 50 kilograms convinces with maximum storage density, flexible scalability, enormous robustness and easy integration. Compared to conventional automated systems, the RSX1, which is based on innovative shuttle-technology, significantly reduces the space required and increases efficiency and profitability in small parts storage. The performance of the RSX1 is flexibly scalable up to 1500 storage and retrieval operations per hour and aisle. With a height of up to 30 metres, the RSX1 also makes optimal use of the airspace. Whether decentralised centre, micro-fulfilment centre, buffer warehouse or production warehouse – with the innovative RSX1 shuttle system, intralogistics can be automated to great advantage

Customer needs

1. Maximum storage capacity

2. High flexibility and scalability

3. Reliable system availability

and process security

4. Easy integration

5. Solutions for micro fulfilment

6. Maximum space efficiency

Customer needs

1. Maximum storage capacity

2. High flexibility and scalability

3. Reliable system availability and process security

4. Easy integration

5. Solutions for micro fulfillment

6. Maximum space efficiency

Facts at a glance

Load units

Totes and trays in various materials and surfaces (plastic, metal, foldable, etc)

Size: 400 x 600 mm to 450 x 650 mm

Height: from 20 mm

Weight: up to 50 kg

Temperature range

2 - 45 °C

Performance

Flexibly scalable, up to 1,500 storage and retrieval operations per hour per aisle

Dimension

Flexibly scalable, up to 30-metre high and up to 150-metre long

RSX1 shuttle system

The high-density small parts storage system for totes and trays weighing up to 50 kilograms convinces with maximum compaction of the storage locations, flexible scalability, enormous robustness and easy integration. Compared with conventional automated systems, the RSX1, which is based on novel shuttle-technology, significantly reduces the space required and increases efficiency and profitability in small parts storage. The flexible scalable performance of the RSX1 reaches up to 1500 storage and retrieval operations per hour and aisle. With a height of up to 30 metres, the RSX1 also makes optimal use of the airspace. Whether it’s a decentralised centre, micro-fulfilment centre, buffer warehouse or production warehouse – with the innovative RSX1 shuttle system, intralogistics can be automated to great advantage.

Facts at a glance

Load units

Totes and trays in various materials and surfaces (plastic, metal, foldable, etc)

Size: 400 x 600 mm to 450 x 650 mm

Height: from 20 mm

Weight: up to 50 kg

Temperature range

2 - 45 °C

Performance

Flexibly scalable, up to 1,500 storage and retrieval operations per hour per aisle

Dimension

Flexibly scalable, up to 30-metre high and up to 150-metre long

Facts at a glance

Load units

Totes and trays in various materials and surfaces (plastic, metal, foldable, etc)

Size: 400 x 600 mm to 450 x 650 mm

Height: from 20 mm

Weight: up to 50 kg

Temperature range

2 - 45 °C

Performance

Flexibly scalable, up to 1,500 storage and retrieval operations per hour per aisle

Dimension

Flexibly scalable, up to 30-metre high and up to 150-metre long

Core components

RS-Rack

Robust construction with minimal flooring requirements

Flexibly adaptable and expandable

Maximum height: 30 m

Intelligent access concept with integrated maintenance levels

RS-Shuttle

Level-bound/ non-level-bound

Temperature range: 2-45 °C

Low overall construction height and therefore no loss of space from a tote height of 100 mm

Extremely robust and reduced susceptibility to faults due to innovative load suspension

RS-Lift

Lifts can be positioned anywhere in the rack

Number of lifts can be scaled as required

Space-saving transfers of the unit loads without additional conveyor technology

High energy efficiency due to DC link coupling and power caps

RS-Software

Modern app-based user interface

Standardised, highly flexible IT interface to external material flow and warehouse management systems covering all sequencing requirements

Provision of IoT data via MQTT

Comprehensive update and upgrade capability

Core components

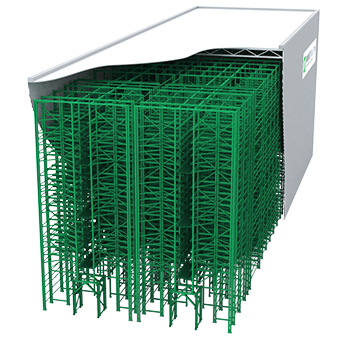

RS-Rack

Robust construction with minimal flooring requirements

Flexibly adaptable and expandable

Maximum height: 30 m

Intelligent access concept with integrated maintenance levels

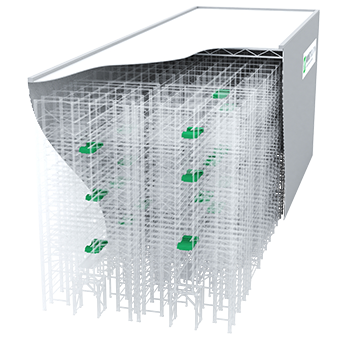

RS-Shuttle

Level-bound/ non-level-bound

Temperature range: 2-45 °C

Low overall construction height and therefore no loss of space from a tote height of 100 mm

Extremely robust and reduced susceptibility to faults due to innovative load suspension

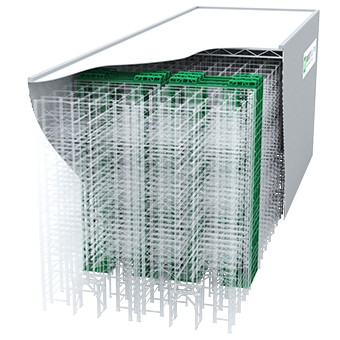

RS-Lift

Lift positions freely selectable

Number of lifts can be scaled as required

Space-saving transfers of the unit loads without additional conveyor technology

High energy efficiency due to DC link coupling and power caps

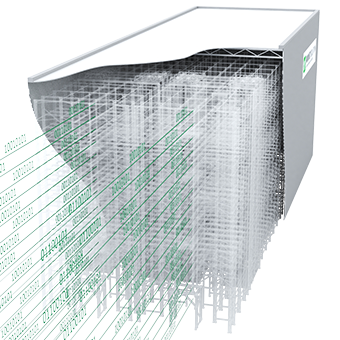

RS-Software

Modern app-based user interface

Standardised, highly flexible IT interface to external material flow and warehouse management systems covering all sequencing requirements

Provision of IoT data via MQTT

Comprehensive update and upgrade capability

Fields of application

With the RSX1 shuttle system, customers receive an innovative and automated small parts storage system that quickly and easily adapts to individual dimensions and performance requirements. The compact shuttle system benefits numerous types of facilities, ranging from slow-moving distribution warehouses to highly dynamic buffer centres with sorting functions.

It is possible to implement the RSX1 both as the central storage component of an individual intralogistics system (RSX1-Enterprise) and as a standardized fulfilment centre (RSX1-Micro).

Fields of application

With the RSX1 shuttle system, customers receive an innovative and automated small parts storage system that quickly and easily adapts to individual dimensions and performance requirements. The compact shuttle system benefits numerous types of facilities, ranging from slow-moving distribution warehouses to highly dynamic buffer centres with sorting functions.

It is possible to implement the RSX1 both as the central storage component of an individual intralogistics system (RSX1-Enterprise) and as a standardized fulfilment centre (RSX1-Micro).
